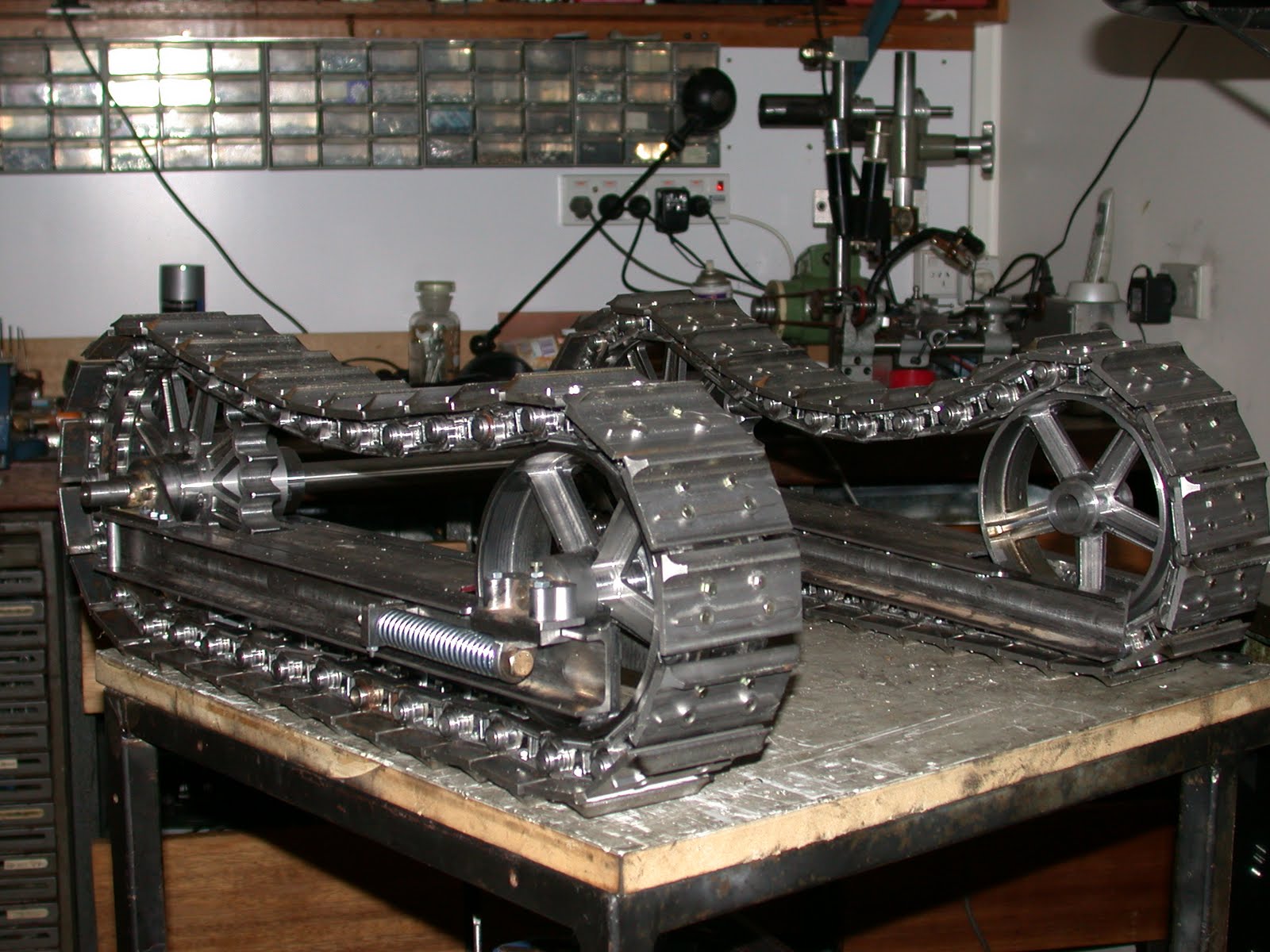

Right hand track with idler assembled on axle in spring loaded sliding brackets.Drive sprocket is mounted on its hub with roller bearings
The two track assembled on the lazy axle are 600mm long by 500mm wide
Saturday, July 3, 2010
Lazy axle and sprocket hubs
Right hand track with idler assembled on axle in spring loaded sliding brackets.Drive sprocket is mounted on its hub with roller bearingsThe two track assembled on the lazy axle are 600mm long by 500mm wide
